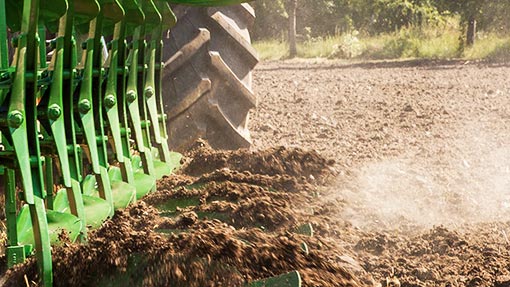

Following on from the static introduction at LAMMA and Cereals earlier this year, Tillage-Live offers the first opportunity to see the new Cayron plough in the ground.

Two versions will be available – the Cayron 200, with a stepped furrow width adjustable or the Cayron 200 V which is equipped, as standard, with hydraulic furrow width adjustment.

See also: All the Tillage-Live news

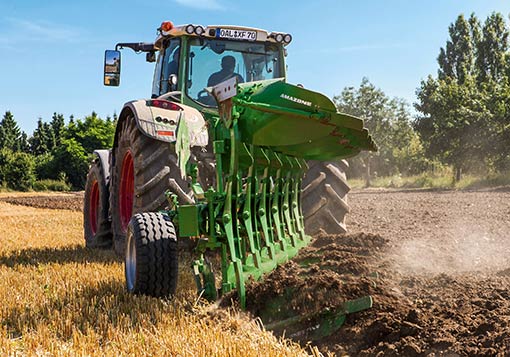

The unit at Tillage-Live will be the Cayron 200 V. A simple hydraulic system provides an easy set-up of the front furrow width, the pulling angle and working width via three interlinked hydraulic rams. Hydraulic adjustment of the front furrow width comes as standard on both models.

The body to body clearance of 100 cm, in combination with a beam height of 83 cm and the smooth surface of the over-dimensioned main beam, guarantees maximum passage. Both models are equipped with a double-action shear bolt protection sys-tem against damage.

The headstock is equipped with a sprung, one-piece sprung cross shaft which provides a very good damping function and so clearly reduces the strain on the turnover linkage. The turnover mechanism is designed around a 130 mm diameter hollow shaft and equipped with two equally large, high-quality, robust taper roller bearings.
