VIDEO: Lemken to launch cultivator and sprayer at Cereals

Although ploughs account for more than 28% of its sales, German manufacturer Lemken is keen to shake off its plough-only reputation.
Last year, 28% of its business was from drills and power harrows, 33% from cultivators and discs and 7% from sprayers.
Although only 1% of UK sales came from sprayers last year, the company has seen a rise in orders in 2010, according to Lemken UK general manager Mark Ormond, following the launch of its first own-design sprayer last year, the Sirius.
The UK and Ireland are key markets for the company, which has been offering cultivation kit to British farmers for 50 years. It sells 500-600 machines here each year and last year saw Lemken UK gain a 13% increase in turnover, partly due to dealer recruitment and increased investment.
Since 2005, its strategy has been to develop export markets, according to Mr Ormond. “Until 2007, the UK market had stagnated at k4-5m for several years. After investment, this rose by 100% and in 2008 it was over k9m.”

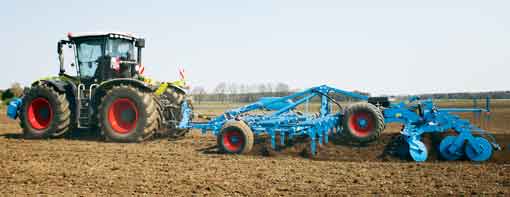

Hydraulic working depth control comes as standard, allowing operators to adjust depth in the cab at tramlines and at headlands, while one row of rings consolidates at depth and a second row has a profile designed for surface consolidation to encourage germination.
With all semi-mounted Karat machines over 4m, hydraulic traction assistance comes as standard. An extra hydraulic cylinder, pre-tensioned by gas accumulators, has the potential to transfer an additional 1.5t to the tractor’s rear axle, meaning operators don’t have to add wheel weights to improve traction, says the company.
The Karat 9/700 KUA needs about 350hp to pull it and costs £42,263.
Albatros 9
Lemken purchased two German sprayer manufacturers in 2009 and the Sirius, launched last year, was the first machine to be designed and built by Lemken. Launched at Agritechnica, the Albatros 9 is the company’s second range since the takeover.
The new machines, which replace the Albatros 20, 30, 40, and 60 models, keep the compactness of the previous range and low boom height for stability, but adopt a new “operation centre” which groups all controls round the induction hopper for speedy filling.
The Albatros 9 is available with five different tank sizes ranging from 2200 litres to 6200 litres, and with boom widths from 15m to 39m. Steering is done via the drawbar and the boom is close-coupled to the axle to reduce yaw.
The company’s Spraydos control terminal comes as standard, however there is an option to upgrade to the company’s new multi-make compatible Competence Center Isobus (CCI) terminal. The Albatros costs from £43,000.
Compact Solitaire 9 600 KK
Already available in a trailed, non-powered version, the Compact Solitaire 9H will be available from this autumn with a Zirkon power harrow.
The 6m wide hydraulic-fold machine is aimed at those wanting a power harrow drill combination but who don’t have the lift capacity for a mounted machine.
It will need 230-300hp to pull it and has a divided 4500-litre hopper for grain and fertiliser. The machine can be fitted with a trailed seeder for crops like maize, in which case the whole hopper can be used for fertiliser.
“Often, the danger for folding machines is that all the pressure goes in the middle and the sides effectively are in float. But the Compact Solitaire 9H 6m has two 3m power harrows and a frame which puts pressure from the hopper on to four sections,” says Mr Ormond. For the UK market, this combined grain and fertiliser drill is most likely to be popular in Scotland and Ireland for spring barley.
Juwel 8 plough
The Juwel 8 is the first model of a new mounted plough range that will eventually replace the well-known Opal series next year. The new range takes many of the features from the Opal, but introduces several high-spec benefits like an electro-hydraulic turnover device which allows plough pitch to be set from the tractor seat.
The land wheel has been redesigned to increased ground clearance for tractors with low lift height, while the Hydromatic auto-reset system allows 38cm upward and up to 20cm sideways movement for continuous working.
The Juwel 8 is available with five, six or seven furrows and can be fitted with the company’s DuraMaxx plough bodies. Mouldboards and slats are made from harder steels than normal, and aren’t fitted with drill or punch holes. A QuickFit system allows shares to be changed without tools.
